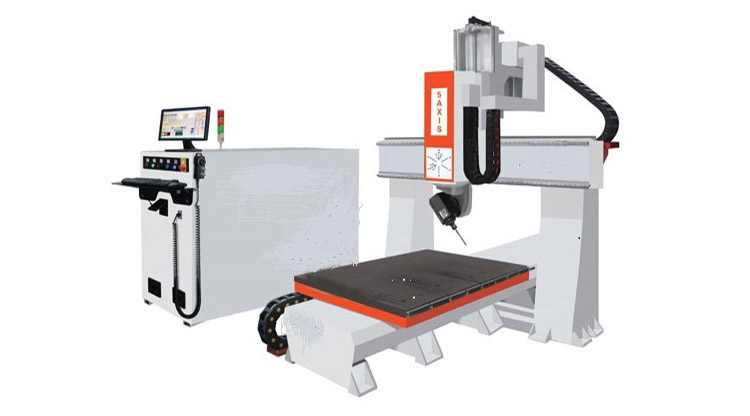

CNC Router Model BRM 5 Axis 3668


We are one of the most prominent CNC router suppliers. We offer a wide range to our valuable clients like CNC router engraver, mini CNC router engraver, CNC router cutters. Our range is manufactured using the high quality raw materials at the manufacturers end. We offer these at the most competitive rates. Some of the technical specifications are as follows:
  • X, Y, Z Travelling Size: 6800 x 3600 x 1250

  • C Travelling Size: 210°C (±150°C)

  • B Travelling Size: 180°C (it90t)

  • Table Size: 2900 x 6800

  • Working Accuracy: +0.03mm

  • Repositioning Accuracy: ± 0.05mm

  • Table Structure: Cast Steel

  • X, Y, Z Structure: X, Z Ball Screw, Y Rack Pinion

  • Max. Travel Rate: 40000mm/min

  • Max. Working Speed: 30000mm/min

  • Spindle Power: HSD 3.8Kw Self - Cooling Spindle

  • Spindle Speed: 100 - 24000 RPM

  • Drive System: Servo System

  • Working Voltage: AC380V/50Hz

  • Command Language: G Code, F/S

  • Operating System: FAGOR

  • Net Weight 12800KG
